Set up Microsoft Entra ID SAML single sign-on

Set up SAML SSO for the Ploy dashboard by configuring a SAML enterprise application in Microsoft Entra ID and pasting its federation metadata into Ploy. Ploy requires the SAML response to be signed with SHA-256, accepts unencrypted assertions, and supports IdP-initiated sign-in. The values below come from a working Entra configuration confirmed with Ploy support.

Before you start

Microsoft Entra admin access to create and manage an enterprise application.
The service provider values shown on the Single Sign-On (SSO) page in your Ploy organization settings (copied in the next section).

Copy the service provider values from Ploy

In Ploy, open the Single Sign-On (SSO) page in your organization settings. It shows the values to add to your identity provider:

Ploy field	Value
Entity ID (Identifier)	`urn:ploy:dashboard`
ACS URL (Reply URL / Assertion Consumer Service)	`https://api.joinploy.com/sso/sp/consume/<your-org-id>`
Sign on URL (Login URL)	`https://api.joinploy.com/sso/auth/signin/<your-org-id>`
Metadata URL	`https://api.joinploy.com/sso/sp/metadata/<your-org-id>`
Logout URL (SLO URL / Single Logout Service)	`https://api.joinploy.com/sso/sp/logout/<your-org-id>`

The URLs on the page already contain your organization ID, so copy them from Ploy rather than typing them.

Create the enterprise application in Entra

Create a new enterprise application to represent Ploy in Microsoft Entra ID and open its SAML single sign-on settings.

Basic SAML Configuration

Fill in the Entra fields with the values from the Ploy page:

Entra field	Value
Identifier (Entity ID)	`urn:ploy:dashboard`
Reply URL (Assertion Consumer Service URL)	The ACS URL from Ploy
Sign on URL	The Sign on URL from Ploy
Logout Url (Optional)	The Logout URL from Ploy

Attributes & Claims

Add these claims so Ploy receives each user's email and name. The emailaddress claim is the one Ploy requires: it reads the sign-in email from that attribute.

Claim	Type	Value
Unique User Identifier (Name ID) (required claim)	SAML	`user.userprincipalname`
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress` (additional claim)	SAML	`user.mail`
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/givenname` (additional claim)	SAML	`user.givenname`
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/name` (additional claim)	SAML	`user.userprincipalname`
`http://schemas.xmlsoap.org/ws/2005/05/identity/claims/surname` (additional claim)	SAML	`user.surname`

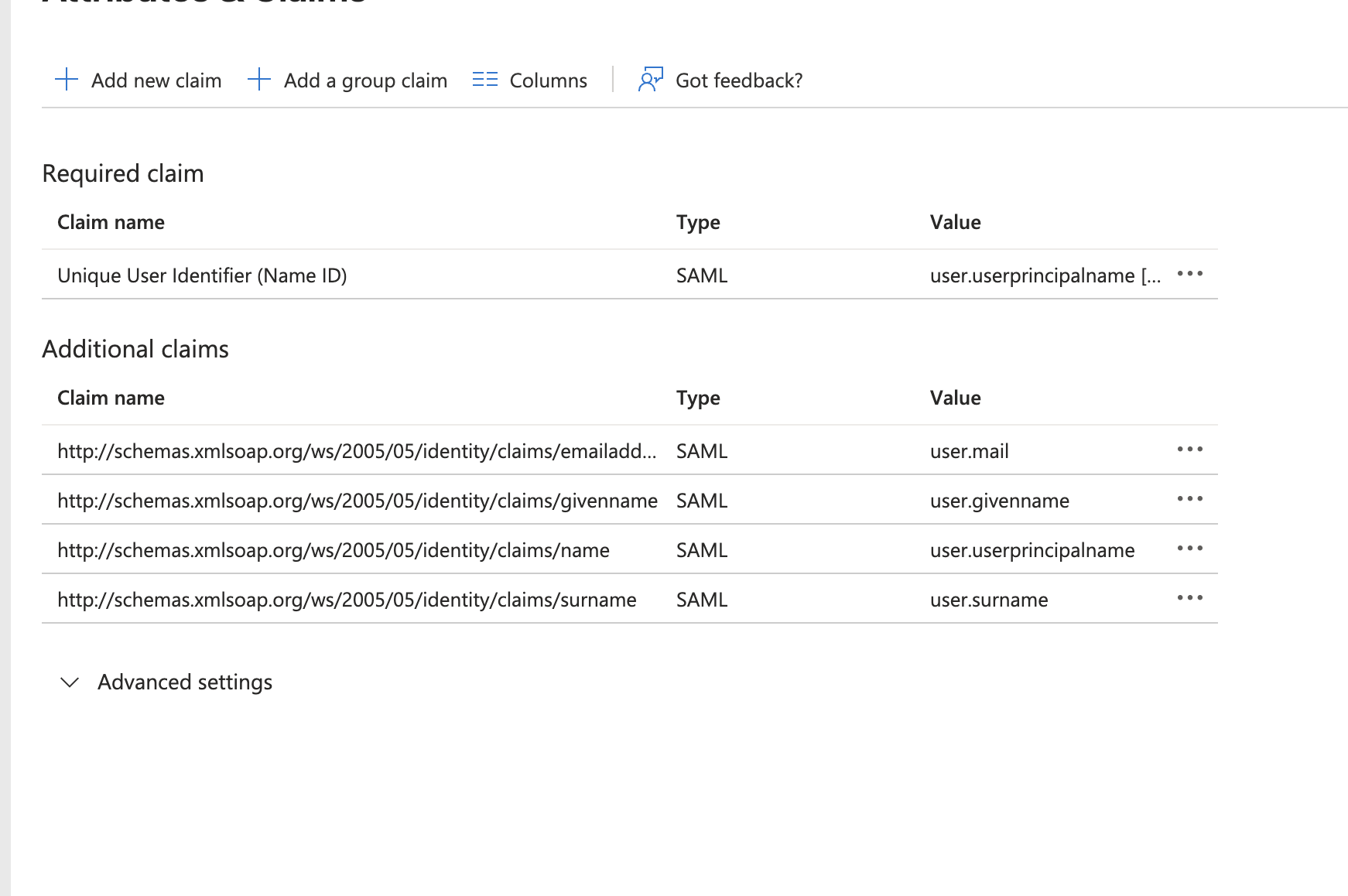

Working Entra Attributes and Claims configuration for Ploy

A login without a usable email attribute fails with "SAML authentication failed". Ploy can also read the email from an attribute named http://schemas.xmlsoap.org/claims/EmailAddress, emailaddress, or email, or from the Subject NameID when its format is urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress. The configuration above sends it in the emailaddress claim.

SAML Signing Certificate

Two settings on the certificate panel matter for Ploy:

Set Signing Option to Sign SAML response and assertion. Ploy requires the SAML response envelope to be signed; a signed assertion alone is not enough. Assertions may be left unencrypted.
Set Signing Algorithm to SHA-256. Ploy rejects SHA-1 signatures and digests.

Finish in Ploy

Download the Federation Metadata XML from Entra.
In Ploy, open the Single Sign-On (SSO) settings and paste the metadata XML.
Add your email domains. Each domain must be an internal domain of your organization, and a domain claimed by another organization is rejected.
Save the configuration. A new configuration starts with SSO enabled and Enforce SSO off by default.
Run Ploy's test action for SSO and complete a real sign-in through the sign-in URL it returns.

If the test sign-in fails, see Fix SAML single sign-on errors.
