Single sign-on (SSO)

Set up Okta SAML single sign-on

Configure a SAML 2.0 app integration in Okta, then paste its metadata XML into Ploy to enable SAML single sign-on for the Ploy dashboard. This guide covers the SAML app in Okta only: it is separate from Ploy's Okta API integration, which uses an API Services app to import your users.

Before you start

You need admin access to your Okta organization, and the service provider values from Ploy. In Ploy, open your organization settings and go to the Single Sign-On (SSO) page. It lists the values you copy into Okta, including your organization-specific URLs.

Create the app integration in Okta

  1. In Okta, create a new app integration and choose SAML 2.0.

  2. Name it something recognisable, for example Ploy.

Enter the general configuration values

On the app's SAML settings page, fill in the two values below. For Okta, the single sign-on URL is the ACS URL from Ploy, not the sign on URL.

Okta field

Value

Single sign-on URL

Your ACS URL: https://api.joinploy.com/sso/sp/consume/<your-org-id>

Audience URI (SP Entity ID)

urn:ploy:dashboard

Leave Attribute Statements empty. The working configuration has no expressions configured.

Set the SAML settings

Set the remaining SAML options exactly as in this working configuration. Ploy requires the SAML response envelope to be signed: a signed assertion alone is not enough. Assertions may stay unencrypted, and IdP-initiated sign-in is supported.

Setting

Value

Name ID Format

Unspecified

Response

Signed

Assertion Signature

Signed

Signature Algorithm

RSA_SHA256

Digest Algorithm

SHA256

Assertion Encryption

Unencrypted

SAML Single Logout

Disabled

SAML Signed Request

Disabled

authnContextClassRef

PasswordProtectedTransport

Honor Force Authentication

Yes

Assertion Inline Hook

None (disabled)

Ploy rejects SHA-1 signatures and digests, so the SHA-256 algorithms above are required.

Add the required email attribute

This step is required. Without the legacy email attribute, sign-in fails with "SAML authentication failed".

Okta's Unspecified Name ID format does not give Ploy an email-format fallback, so Ploy needs the email as an attribute statement. Leave the regular Attribute Statements empty and use the legacy profile attribute instead:

  1. Expand Show legacy configuration.

  2. Under Profile attribute statements, add an attribute with:

    • Name: email

    • Name format: Unspecified

    • Value: user.email

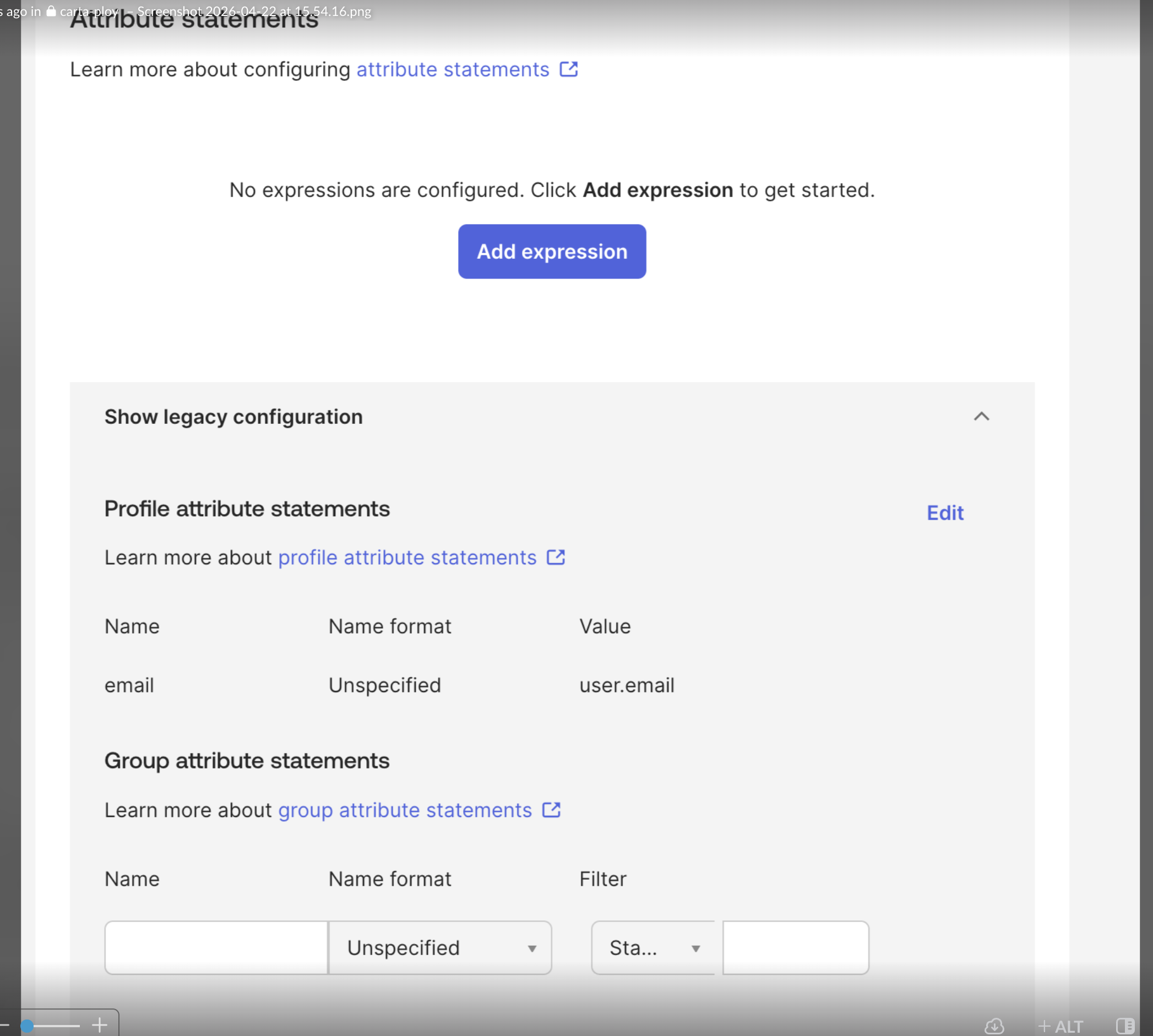

Okta attribute statements with the legacy email profile attribute statement

Download the metadata XML

Copy the identity provider metadata XML from Okta. Make sure it comes from the SHA-2 certificate, not the SHA-1 certificate: Ploy rejects SHA-1.

Assign the people who can sign in

Assign the people or groups who should sign in to Ploy through SSO to the app in Okta.

Connect Ploy and test

  1. In Ploy, go to the Single Sign-On (SSO) page in your organization settings.

  2. Paste the Okta metadata XML.

  3. Add the email domains your users sign in with, at least one.

  4. Save the configuration.

  5. Test by completing a real sign-in through Okta.

For help with sign-in errors after setup, see Fix SAML single sign-on errors.
